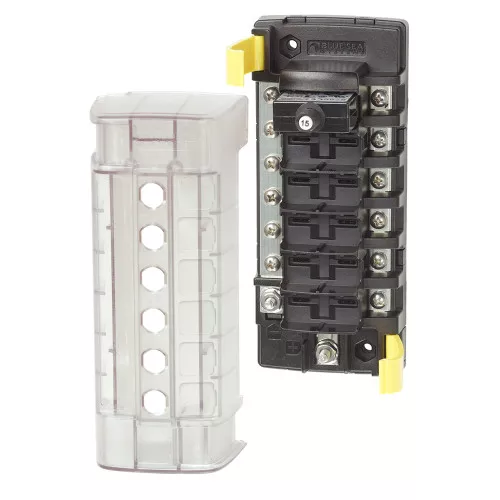

Blue Sea 5052 ST CLB Circuit Breaker Block – 6 Position w/Negative Bus

Description

ST CLB Circuit Breaker Block – 6 Position w/Negative Bus

Features

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits:6
Maximum Amperage:100A (per block) 32A (per circuit)
Maximum Voltage:32V DC
Mounting:8 Screw (M4) or 8 Nut
Negative Bus: Yes
Source:Common SourceMinimum Operating Temperature:-10° C
Maximum Operating Temperature:60° C
Mounting Centers:5.63″(143 mm)
Screw Terminal Type:8-32 Screws with Captive Star Lock Washer
Height:6.69″(169.93 mm)
Weight:0.75lb (0.34 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 100/32a
• Box Dimensions: 3″H x 5″W x 11″L WT: 0.9 lbs
• UPC: 632085050528
